BJL-868 8＂monitor with skin/scalp analyzer
BJL-868 SKIN/SCALP ANALYZER:

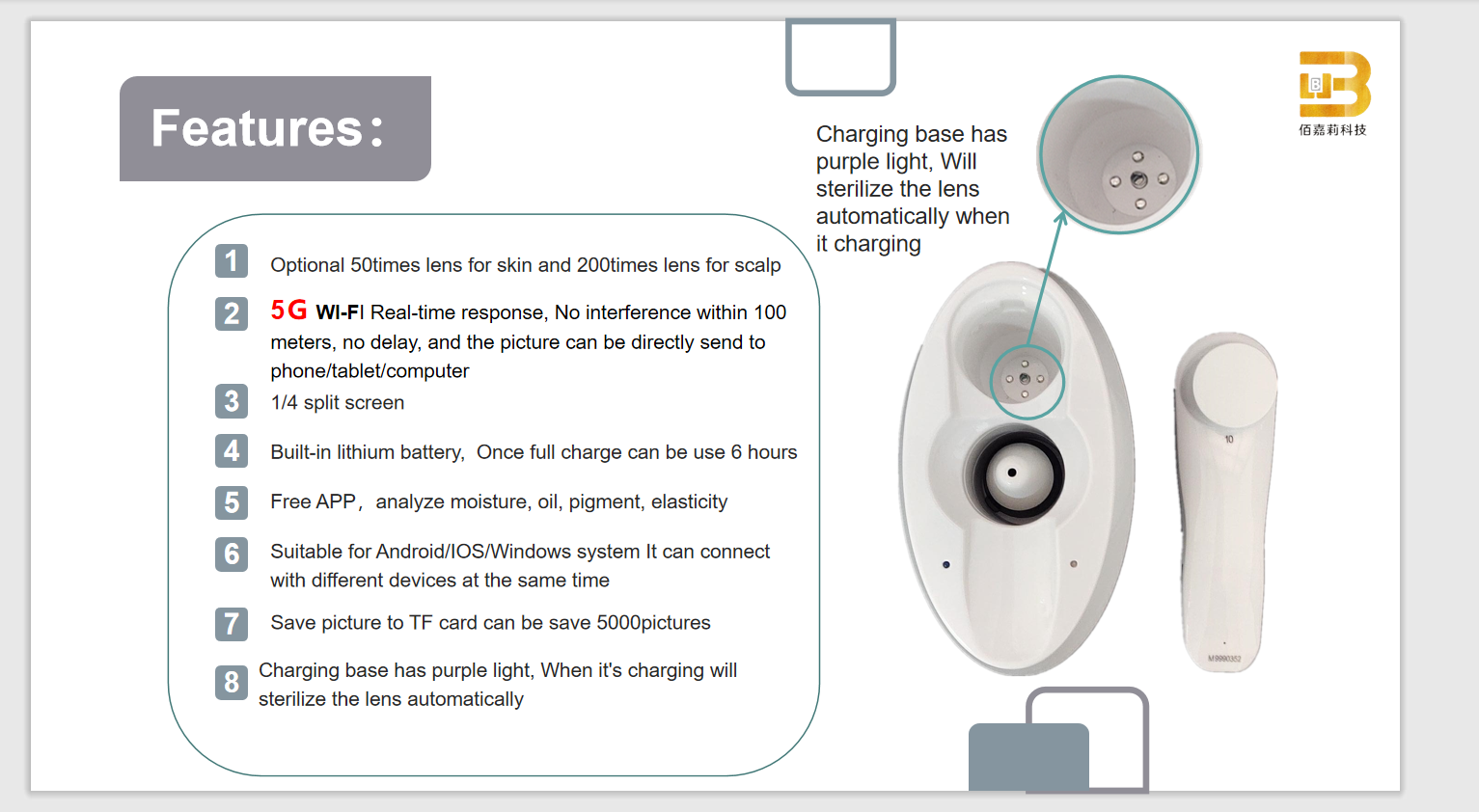

High resolution Skin & Scalp analyzer with 8inch LCD monitor , WiFi function
2. Analyzer with 50 times lens, can see dermis ,epidermis of the skin ,and UV light pore,large pore,and pigment ,sensitive skin and scalp also can be inspected.
3. Patented design-suction analyzer lens ,very easy to use .
4. With high resolution, high performance High sensitivity and high quality.

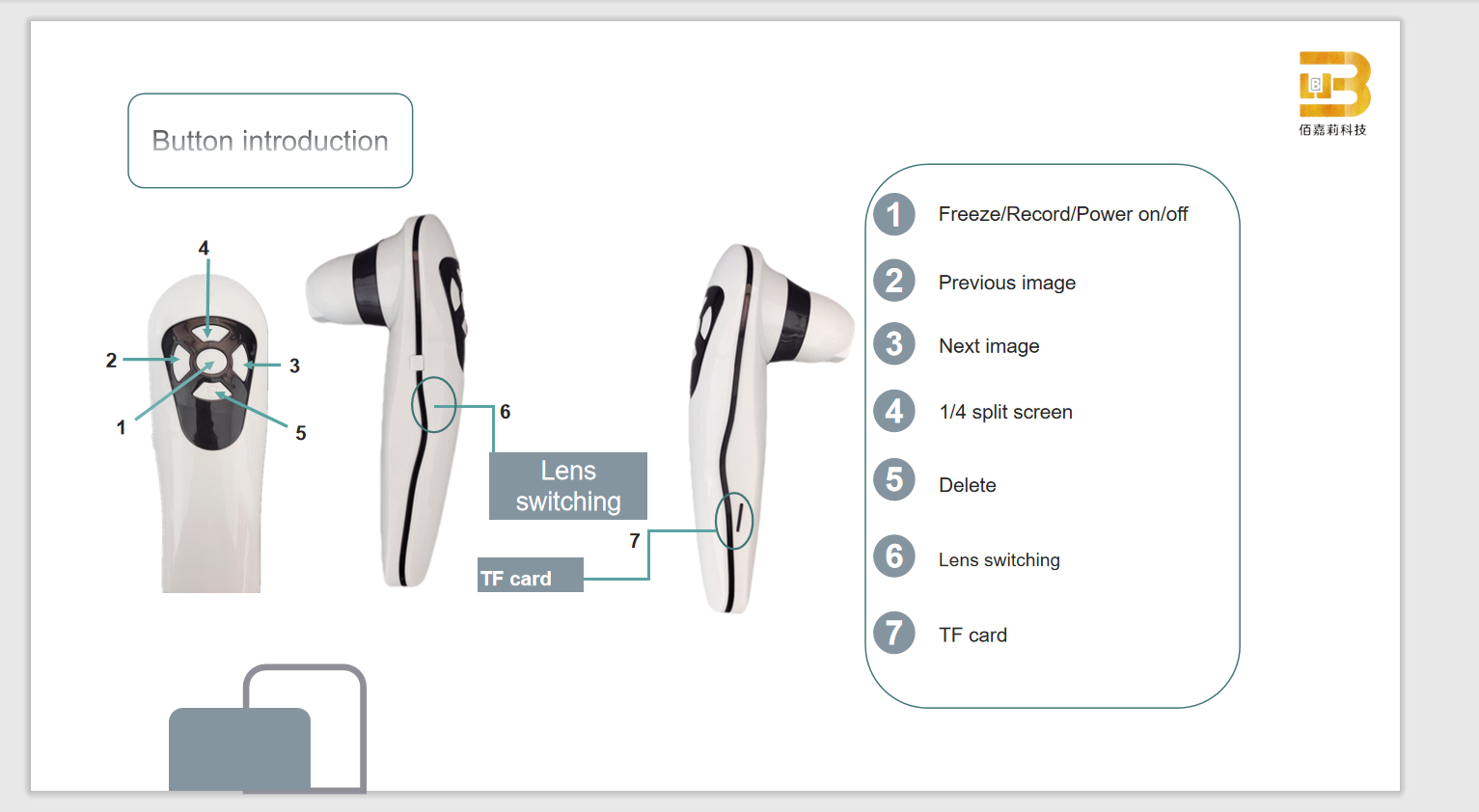

5. The five control buttons: previous image, freeze/save/power on &off switches ,next image, Analyzer lens LED lights turn on/off and delete image

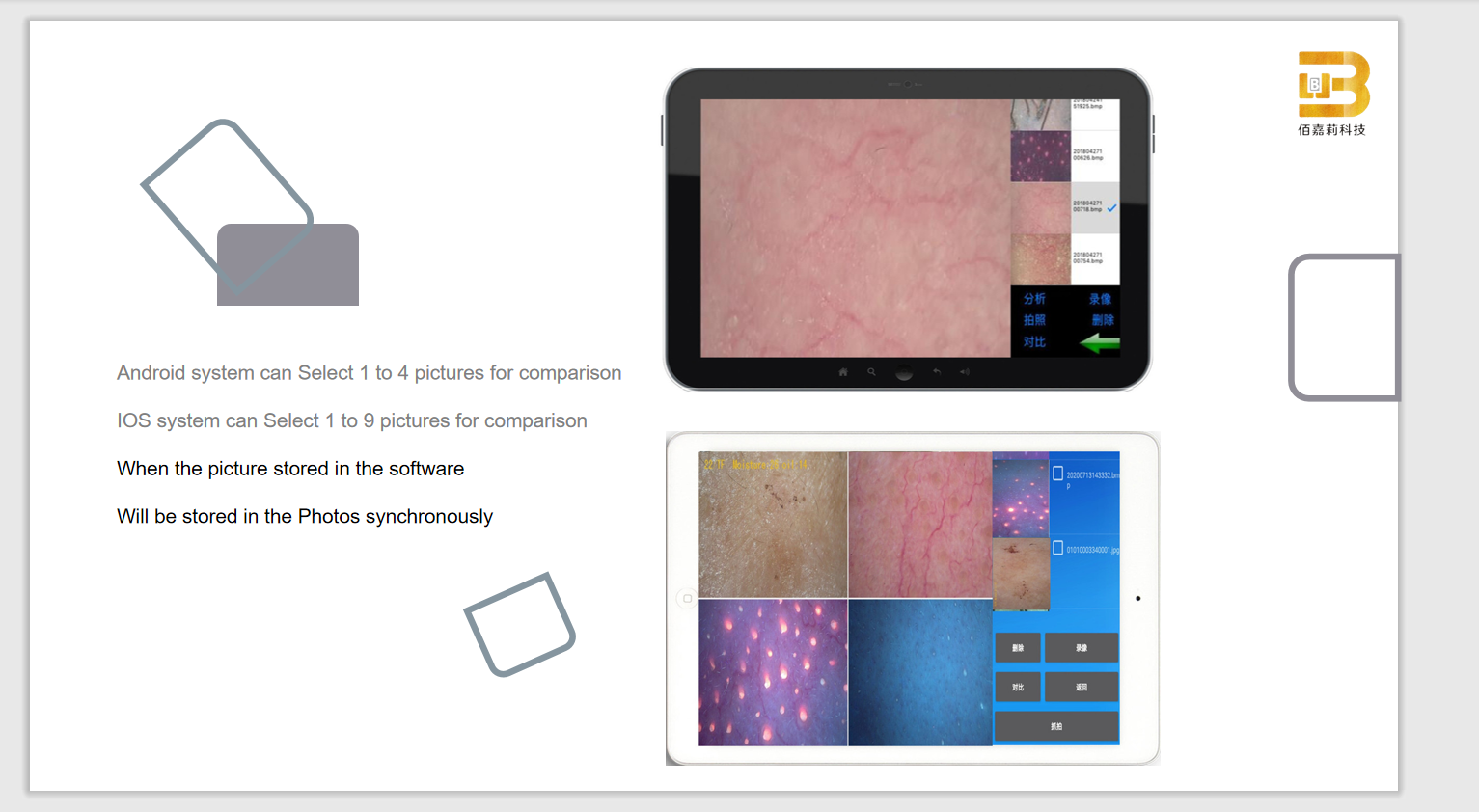

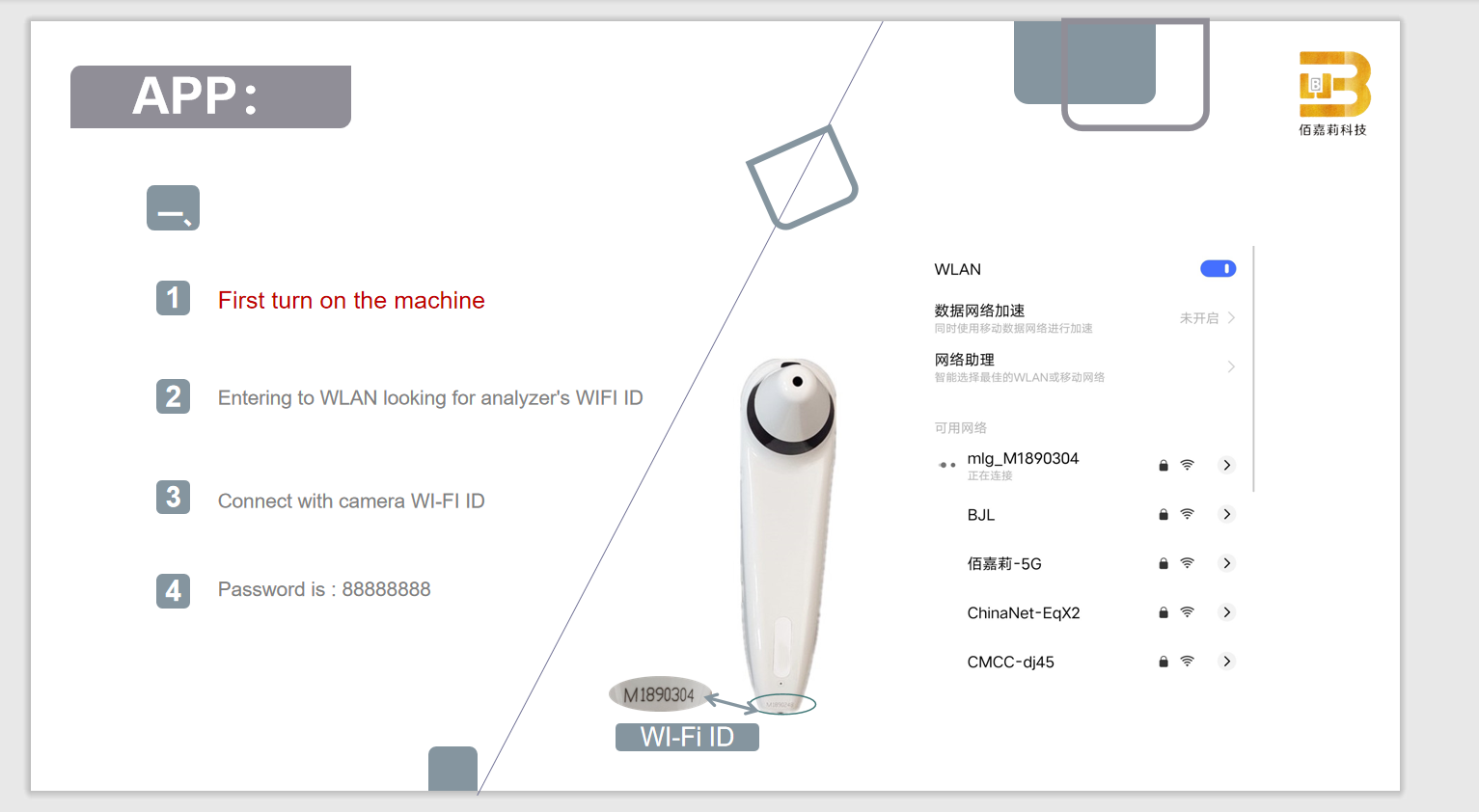

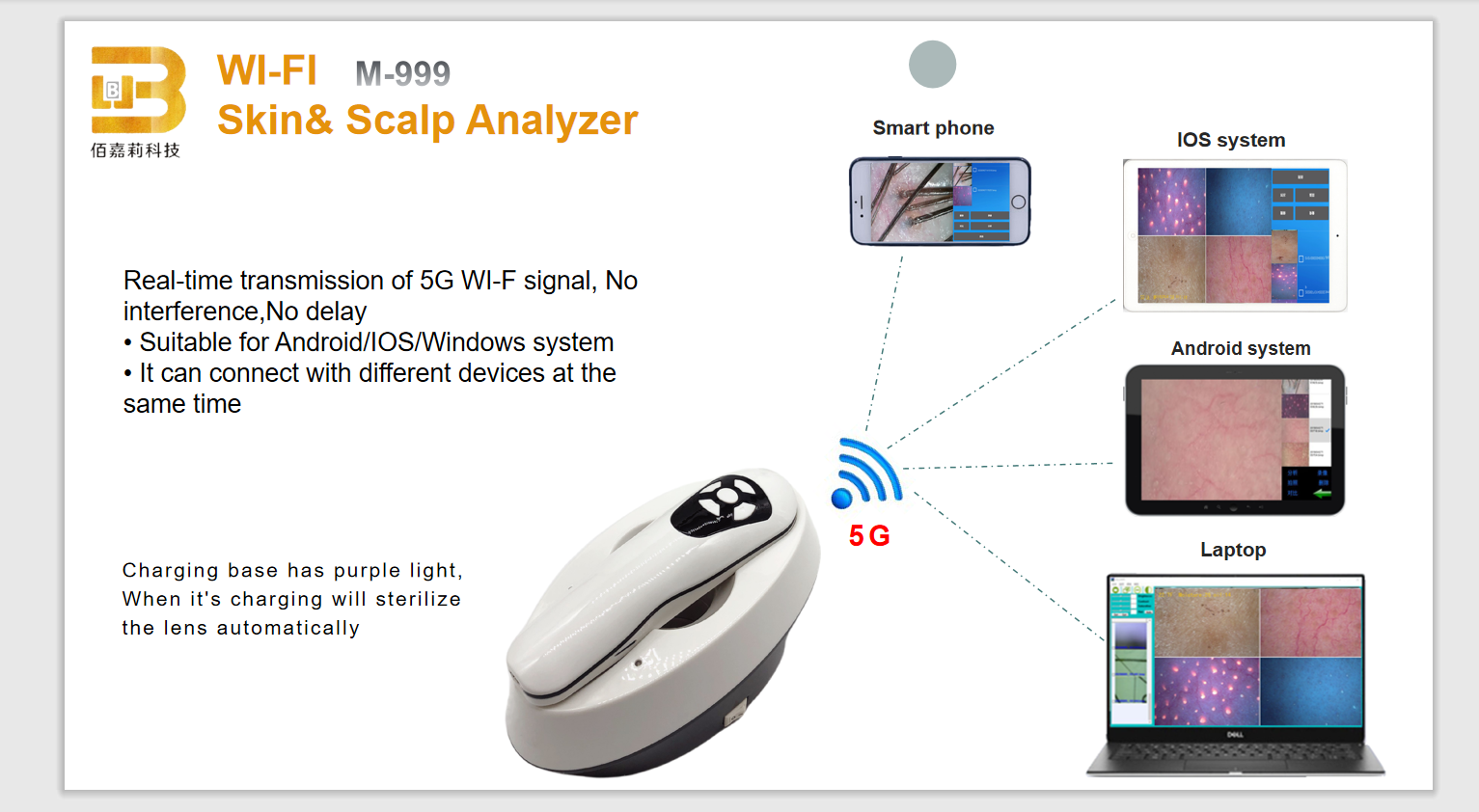

6. With WIFI function, it can transmit the analyzer’s image to smart system ,like mobile phone and tablet PC at the same time .

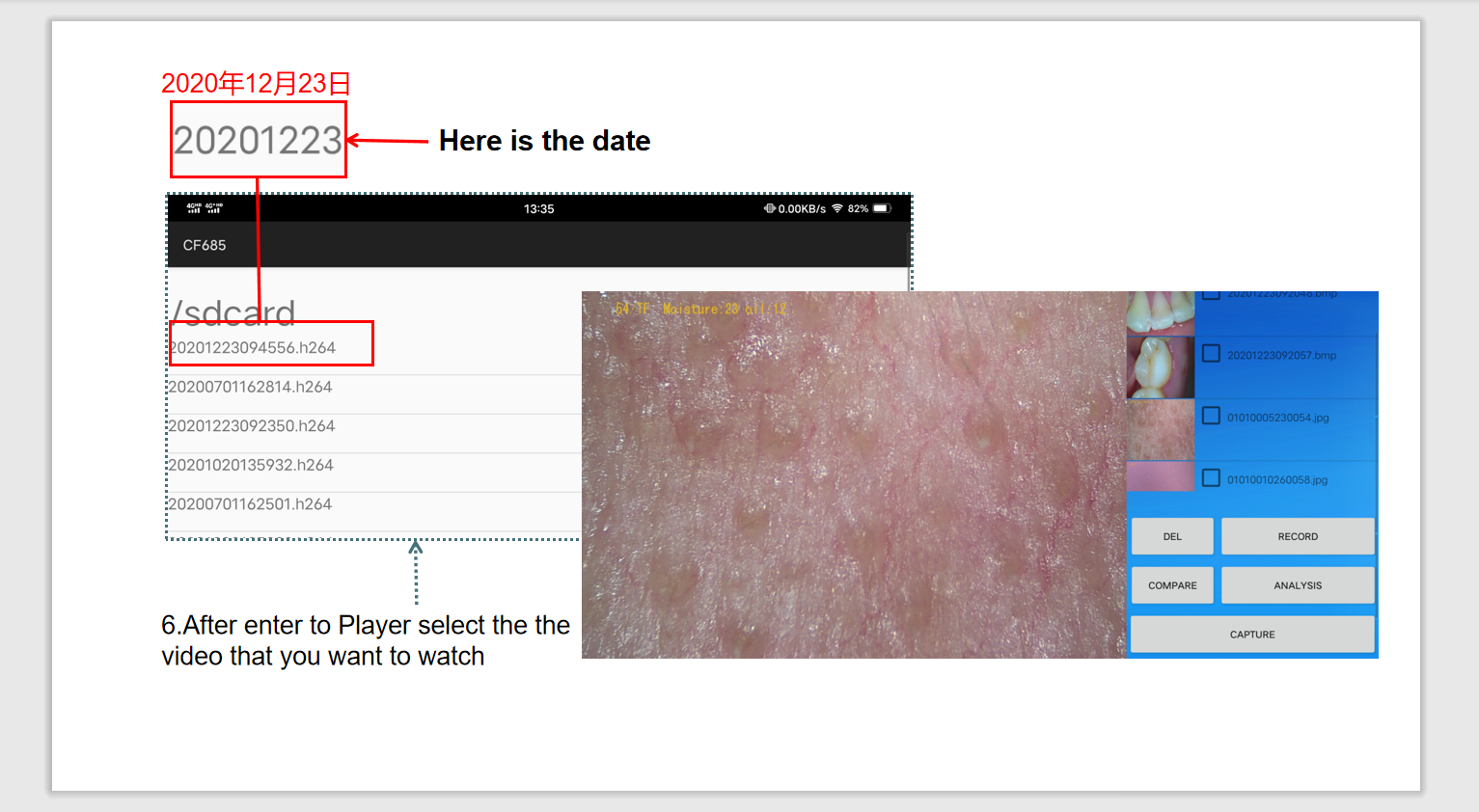

7. Comes with SD Memory card, can save 9999pcs images.

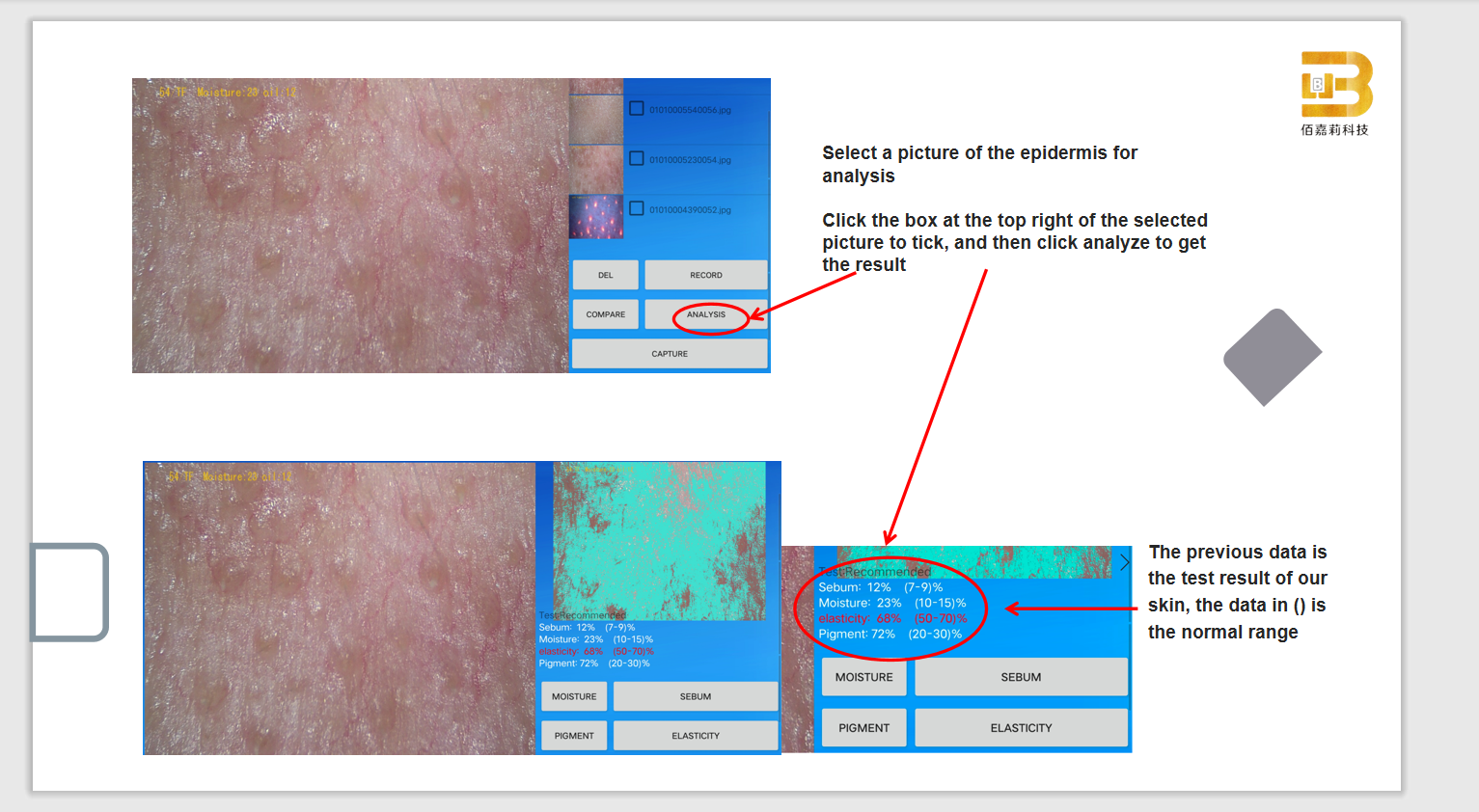

8. Resistive metal probe can analysis the moisture and oil,the test result is more accurate

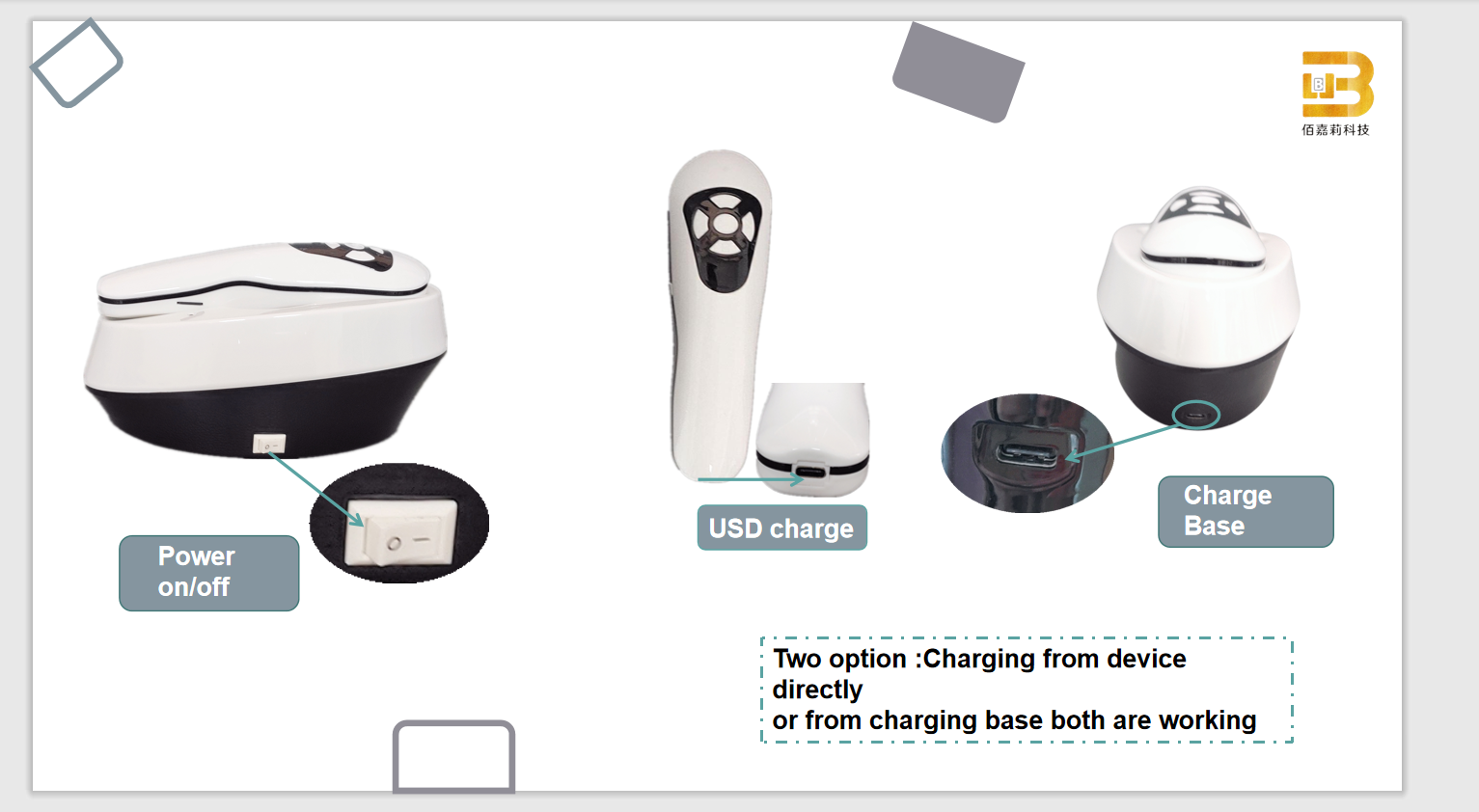

Optional Lithium Battey ,can use it anywhere once full charged
8 inch LCD monitor specification
1. LCD Size : 8.0 inch (Diagonal)
2. Driver element: a-Si TFT active matrix
3. Resolution: 800*3(RGB)*600
4. 4,Display mode: Normally White, Tran missive
5. Dot pitch: 0.0675(W)*0.2025(H)mm
6. Active area : 162.0(W)*121.5(H)mm
7,Module size: 183.0(W)*141.0(H)*6.3(D)mm
8,Surface treatment: Anti-Glare
9. Color arrangement: RGB-stripe
10. Interface: Digital
11: Backlight Power consumption:1.782W(TYP.)
12. Panel power consumption :0.356W(TYP)
